Thyristor Modules

Thyristor modules



We supply a wide range of  thyristor module,diode module,scr module,power module,fast diode module,fast thyristor module.bridge rectifier,single phase bridge rectifier,3 phase bridge rectifier.



Features:

1,Chip and backplane electrical insulation

2,International standard package;

3,Voltage can upto 5000V

4,Press-pack structure, excellent temperature characteristics and power cycling capability

5,Below 350A modules are all forced air cooling,  above 400A modules, air-cooled and water-cooled optional



Typical application:



1. AC and DC motor control, various power rectifier

2. Industrial heating, dimming, non-contact switch

3. Motor soft start, static var compensator

4. Welding machine, inverter, UPS power supply, battery charge and discharge



Semiconductor Device code:

Thyristor module Configuration:

General Thyristor modules Product List:

mtx-thyristor-modulesNote: 1,MTX represent any one of “MTC”,”MTA”,”MTK”,”MT”

         2,”*” mean water-cooled modules

         3,Vdrm/Vrrm from 2500V-5000V,please contact us.

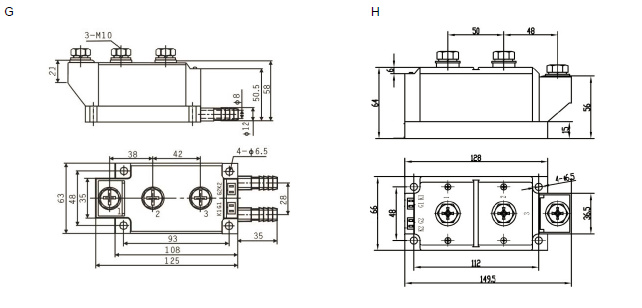

Thyristor Module Outline:

thyristor-module-outline-1thyristor-module-outline-2thyristor-module-outline-3thyristor-module-outline-4thyristor-module-outline-5thyristor-module-outline-6thyristor-module-outline-7



Download Thyristor Modules Catalog:

Thyristor Modules









General Diode Modules

General diode modules

We supply a wide range of  thyristor module,diode module,scr module,power module,fast diode module,fast thyristor module.bridge rectifier,single phase bridge rectifier,3 phase bridge rectifier.



Features:

1. Chip and backplane electrical insulation

2. Voltage can upto 5000V

3. International standard package;

4. Press-pack structure, excellent temperature characteristics and power cycling capability

5. Below 400A modules are all forced air cooling,  above 500A modules, air-cooled and water-cooled      optional



Typical application:

1. DC power supply instruments and equipment

2. AC and DC motor control, motor soft start

3. various power rectifier

4. Welder, inverter, battery charge and discharge

Device code:

Configuration:

Diode module Product List:

mdx-diode-module

Note: 1,MDX represent any one of “MDC”,”MDA”,”MDK”,”MD”

         2,”*” mean water-cooled modules

         3,Vdrm/Vrrm from 2500V-5000V,please contact us.



Diode modules outline:

thyristor-module-outline-1thyristor-module-outline-2thyristor-module-outline-3thyristor-module-outline-4thyristor-module-outline-5thyristor-module-outline-6thyristor-module-outline-7





Download Rectifier Diode Modules Catalog:

Rectifier Diode Modules







Fast Thyristor & Diode Modules

We supply a wide range of  fast thyristor module,diode module,scr module,power module,fast diode module,thyristor module.bridge rectifier,single phase bridge rectifier,3 phase bridge rectifier.



Feature:

1. Chip and floor insulation, the international standard package

2. Crimping structure, excellent temperature characteristics and power cycling capability

3. 200A following modules are all forced air cooling, 300A above modules can use air-cooled, water-cooled can also be used

4. Installation is simple, easy maintenance



Typical application:

1. Inverter

2. Induction Heating

3. chopper

Semiconductor Device code:



Fast thyristor module Configuration:



Product List:

fast-thyristor-diode-modules

Note:1,”*” mean water-cooled modules.

          2,MKC,MHC @Tc=85,MZC @Tc=100,Viso(ac)>2500V

400A,500A…please contact us.



Fast thyristor Module:

thyristor-module-outline-1thyristor-module-outline-2thyristor-module-outline-3thyristor-module-outline-4thyristor-module-outline-5thyristor-module-outline-6thyristor-module-outline-7





Download Fast Thyristor Modules Datasheet:

Fast Thyristor Modules Fast Diode Modules











Phase Control Thyristor

Phase Control Thyristor



We design and manufacture various voltage of phase control thyristor.Our phase control thyristor include disc type and stud type.Disc thyristor current range from 500A to 6000A,voltage range from 1000V to 7500V.Stud thyristor current range from 10A to 500A,voltage value is 100V-1500V.

Our phase control thyristor have a very good low switching loss characteristic,it popular be used on turn on and off equipment.For example,our 6500v phase controlled thyristor is hot used on medium voltage soft starter, motor drive and converter etc.

We have advantage on high voltage thyristor and high current scr.With stable performance,our high power thyristor widely be used on furnace,rectifier device,high power supply,industrial drive,traction and transmission,excitation,static reactive power compensation (SVC).



Phase Control Thyristor Features:phase control thyristor testing



1,Distributed gate design

2,High di/dt capability

3,Low switching loss

4,Max. voltage up to 8000V



Phase Control Thyristor Applications:



1,Low voltage soft starter,medium voltage soft starter

2,Industrial drives,Inverter,Converters

3,Traction and transmission

3,High current power supply

4,Excitation

5,SVC

6,Welding



Phase Control Thyristor Model List:

Disc Thyristor

phase-control-thyristor-list-1power thyristor product list



































phase control thyristor product listpower thyristor part number list

















































Phase Control Thyristor Outline Drawing:

phase-control-thyristor-outline-drawingphase-control-thyristor-outline-size-2











































power thyristor outline drawing-1





















Download Phase Control Thyristor Datasheet:

Catalogue of Phase control thyristor





















Fast Switching Thyristor – Inverter Thyristor

Fast Switching Thyristor – Inverter Thyristor



We supply various shapes of fast switching thyristor which is also called fast thyristor or inverter thyristor.It is a fast turn off device.Our fast thyristor include standard fast switching thyristor and medium frequency fast thyristor (300HZ-2000HZ).It’s current range from 500A to 4000A, voltage range from 1000V- 4500V.Tq value have 10-25us,30-50us and 50-70us.With excellent fast turn on-off performance,our fast turn off thyristor are hot used on inverter circuit.For example induction heating,thyristor frequency converter,furnace power supply,inverter device etc.electronic equipment.

Along with application of high frequency & medium frequency equipment,fast thyristors require lower tq values.Our fast thyristor optimized tq values to meet this requirements.







fast-scr-test

Fast Thyristor Features:



1,Very short turn-on and turn-off time

2,Large critical rates of current rise

2,High surge current ratings

3,Wide operating temperature range



Fast Switching Thyristor Typical Applications:



1,Induction heating,surface treatment,smelting furnace

2,DC chopper drives,Inverter

3,UPS

4,Pulse power supply

5,Other fast switch equipments.



Fast Switching Thyristor Model Table:

Disc fast Thyristors & Inverter Thyristor

Part NumberIT(AV) Tc=55VDRM VRRMITSMI²tVTOrT tq value(us) RthjcRthchF(KN)Outline
Upto 1600V
KK200A 12-16200A1200V-1600V4KA801.60V1.5016-25us0.0850.026T6
KK300A 12-16300A1200V-1600V4.3KA921.501.4016-25us0.0450.019T7
KK400A 12-16400A1200V-1600V8.5KA3611.401.2016-25us0.0400.0116T9
Up to 1800V
KK500A/12-18500A1200V-1800V6.5KA2111.450.6016-25us0.0400.0116T9
KK600A/12-18600A1200V-1800V10KA5001.300.5016-25us0.0400.0120T9
KK800A/12-18800A1200V-1800V12KA7201.350.4016-25us0.0300.00820T10
KK1000A/12-181000A1200V-1800V14KA9801.550.3516-25us0.0200.00625T11
KK1200A/12-181200A1200V-1800V16KA12801.500.3016-25us0.0180.00632T12
KK1500A/12-181500A1200V-1800V18KA16201.450.2616-25us0.0180.00632T12
KK1800A/12-181800A1200V-1800V19KA18051.420.2516-25us0.0130.00545T13
KK2000A/12-182000A1200V-1800V23KA26451.450.2025-40us0.0120.00550T14
KK2500A/12-182500A1200V-1800V31KA48051.300.1525-40us0.0110.00255T15
Up to 2200V
KK1200A/20-221200A2000V-2200V15KA11251.450.4030-50us0.0200.00625T11
KK1500A/20-221500A2000V-2200V16KA12801.500.3230-50us0.0180.00632T12
KK1800A/20-221800A2000V-2200V18KA16201.500.3030-50us0.0030.00345T13
KK2000A/20-222000A2000V-2200V20KA20001.500.2530-50us0.0030.00350T14
KK2500A/20-222500A2000V-2200V30KA45001.300.2030-50us0.0020.00255T15
Up to 3000V
KK1000A/25-281000A2500V-2800V10KA5001.550.5030-40us0.0200.00625T11
KK1200A/25-281200A2500V-2800V12KA7201.500.4530-40us0.0180.00632T12
KK1500A/25-281500A2500V-2800V15KA11251.500.3230-40us0.0180.00632T12
KK1800A/25-281800A2500V-2800V18KA16201.500.3230-40us0.0130.00545T13
KK2000A/25-282000A2500V-2800V20KA20001.480.2530-40us0.0120.00550T14
KK2500A/25-282500A2500V-2800V25KA31251.500.1830-50us0.0110.00255T15
KK3000A/25-283000A2500V-3000V35KA61251.320.1570-85us0.0070.00270T16
KK4000A/25-284000A2500V-3000V45KA101251.300.13100-115us0.0060.00190T17
Up to 4500V
KK3200A/35-453200A3500V-4500V41KA84051.650.22150-200us0.0060.00190T17
KK4000A/35-454000A3500V-4500V45KA81001.680.25150-200us0.0060.00190T17

Fast Thyristor Outline Drawing:



fast-thyristor-outline-size-drawing

fast-thyristor-outline-size-drawing





Download Fast Switching Thyristor Datasheet:

Catalog of Fast Switching Thyristor



















High Frequency Thyristor

We supply various shapes of high frequency thyristor which are fast turn off thyristor.Our high frequency thyristor tq value is 3us-15us.Its current is from 400A to 2500A,voltage is from 1000V-4500V.



High Frequency Thyristor Features:



1,High frequency

2,Adjust to 2.5KHz-20KHz equipment

High frequency thyristor Product List:

zk-fast-recovery-diode-product-list

High frequency thyristor outline drawing:

zk-fast-recovery-diode-outline-size



Standard Rectifier Diode-Power Diode

Standard Rectifier Diode-Power Diode



Rectifier diode,also named rectifying diode,include standard rectifier diode,power diode,fast recovery diode,high current diode.We manufacture and export a wide range of rectifier diode,current range from 500A-6500A,voltage range from 1000V-8500V.We have advantage on high voltage rectifier,high power rectifier diode.With high quality,our diode not only be used on Chinese manufacturer,also exported standard diode to all over the world.

rectifier diode power diode

Product Features:



1,Low forward voltage drop

2,International standard housing

3,Max. voltage up to 8500V



Diode Applications:



1,Rectifier device

2,Traction and substation

3,Industrial drives

4,Power grid

6,Resistance welding machine



Standard Rectifier Diode Part Number Table:



ctifier diode power diode listctifier diode power diode tablerectifier-diode-list-3power diode rectifying diode







































































Download Rectifier Diode Catalog Data:

Catalog of Rectifier Diode



























Fast Recovery Diode – Fast Diode

Fast Recovery Diode – Fast Diode



Fast recovery diode,also called fast diode with a small reverse recovery time.Our fast recovery diode voltage up to 4500V,current up to 3000A.Our recovery diode have fast recovery diode and soft recovery diode.With high quality and cheap price,our fast recovery diode are popular used on induction heating furnace,not only used on Chinese local market,also exported to Germany,UK,Russian,Ukraine,Iran,Egypt,Brazil,Turkey…



test fast recovery diode

Fast Recovery Diode Features:



1,Small recoveryed charge

2,Soft recovery and fast recovery

3,Reverse voltage up to 4500V







Fast Recovery Diode Typical Applications:



1,Inverse diodes for power transistors,GTO thyristor

2,AC motor control

3,Snubber diodes and free-wheeling diodes

4,UPS

5,Induction heating

6,Induction furnace



Fast Recovery Diode Model Table:

Part NumberIF(AV)@Tc=85VRRMIFSM I²tVFOrFtrrFOutline
Up to 2000V
ZK400A/10-20400A1000V-2000V4500A1011.050.6802.0us5KND6
ZK600A/10-20700A1000V-2000V11KA6050.950.5602.0us15KND9
ZK1000A/10-201200A1000V-2000V20KA20001.000.3503.0us25KND11
Up to 3300V
ZK800A/25-33800A2500V-3300V6400A2051.150.6904.0us15KND9
ZK1000A/25-331000A2500V-3300V15KA11251.500.5005.0us25KND11
ZK2000A/25-332000A2500V-3300V30KA45000.900.3505.0us45KND13
ZK2500A/25-332500A2500V-3300V48KA115200.900.2505.0us56KND15
Up to 4500V
ZK500A/36-45500A3600V-4500V8KA3201.701.2005.2us15KND9
ZK800A/36-45800A3600V-4500V11KA6051.900.8007.0us25KND11
ZK1500A/36-451500A3600V-4500V24KA28801.400.6508.0us45KND13
ZK2000A/36-452000A3600V-4500V26KA33801.300.5008.5us56KND15

Fast Recovery Diode Outline Drawing:

zk-fast-recovery-diode-outline-size







































Download Catalog of Fast Recovery Diode:

Catalog of Fast Recovery Diode



















Welding Diode

Welding diode is a high current rectifier diode which typically used on medium frequency welding machine,MFDC spot welding machine,seam welder.As welding rectifier output.We are Chinese largest welding diodes production base.Welding diodes product line include 7100A / 9000A / 12000A house type welder diodes and 10500A / 13500A houseless type welding diodes.Because of stable quality and long working time,has won many clients’s praise,E.g. resistance welding machine manufacturer,welding robotic service providers,automobile manufacturers etc.



Welding Diodes Features:welding diode



1,High forward current capability

2,Low forward and reverse recovery losses

3,High current up to 13500A

4,Frequency: 1000hz-2000hz



Welding Diode Typical Applications:



1,Medium frequency DC welding machine(MFDC resistance welder)

Spot welding machine,Seam welding machine

2,IT Gun welding transformer,Robot gun transformer



Welding diode part number table:



Part No.IF(AV)VRRMIFSMOutline
ZP4000A/200V-400V4000A200V-400V45KAD1
ZP7100A/200V-400V7100A200V-400V55KAD1
ZP10500A/200V-400V10500A200V-400V70KAD18
ZP12000A/200V-400V12000A200V-400V85KAD2
ZP13500A/200V-400V13500A200V-400V85KAD19
ZP16000A/200V-400V16000A200V-400V120KAD3
ZP18000A/200V-400V18000A200V-400V120KAD20



Welding Diode Outline Drawing:

(D1-D3:Housing rectifier diode.D18-D20:Housingless rectifier diode)

welding diode outline size drawing,welder diode



Download Datasheet:

ZP7100A 400V Welding Diode

ZP10500A-400V Welding Diodes

ZP12000A-200-400V Welding Diodes

ZP13500A-400V Welding Diodes
